OLED screen adopt the latest display technology world’s top LCD panel manufacturer South Korea’s LG , imported OLED screen, using the most advanced splicing control and high-speed image processing technology of American PW company, built-in self-developed LCD splicing video wall controller, which to achieve multi-channel The processing of high-speed video signals is integrated with high-definition, high-brightness and high-color gamut liquid crystal display technology, embedded hardware splicing technology, multi-screen image processing technology, signal switching technology, etc. High-speed, low power consumption, long life, advanced LCD splicing display system.
High definition: – 1920 x 1080
High brightness: – 400 cd/m2
High color gamut : – 15,000:1
Better softness

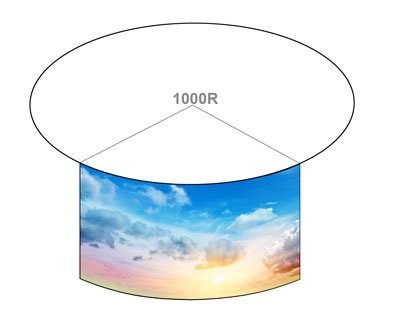

The curvature is as high as 1000R angle.
Image stabilization without flickering
Because each point of OLED maintains the color and brightness after receiving the signal, unlike CRT, it needs to constantly refresh the bright spots.
As a result, the LEDs have uniform brightness, high picture quality and absolutely no flickering.
Specification
| Brand | LG |
| Model No. | CW-OLED55 |
| resolution | 1920 x 1080 |
| Pixel Pitch (mm) | 0.630 x 0.630 mm |
| Brightness | 400cd/m2 (Center 1point ,Typ.) |
| Contrast | 150,000 |
| Display Area | 1217.46 x 693.94 mm |
| Response Time | 1 ms |
| Display Color | 10bit(R), 1.07Billon colors |
| Viewing Angle | 178°(H) / 178°(V) |
| Aspect Ratio | 16:9 |
| Picture quality compesation Tec | LTI、CTI |
| Mean time between failures(MTBF) | 50000 hours |
| Voltage | 100~240V |
| Power consumption | 100W |
| Installation way | Wall mounted、customized cabinet |
| Gross net | 2.4Kg |
| Net weight | – |
| Storage temperature | -20℃~65℃ |
| Working temperature | 0℃~55℃ |
| Working humidity | 10%~90% |
| Quality guarantee | CE,FCC,CCC |
